Interstate Highway Types and the History of California's Interstates


Interstates Turn 50: Innovations


WarningNote: The “Interstates Turn 50” series of pages were originally published on the Caltrans website in 2006. They disappeared from the site in June 2019. Knowing that of the goals of this site is to preserve information about the state highway system, and that includes information that was once on the Caltrans website but later disappeared, a friend from Caltrans requested that I explore saving these pages. Luckily, the pages in this series were preserved in the Internet Wayback Machine, and Caltrans has not asked the Internet Archive to take them down. This is because Caltrans is good about giving permission to use photos for nonprofit use. The images here used to be right there on Caltrans' publicly accessible site, and are posted elsewhere around on hobbyist sites. Still, if you wish to use an image, please formally request the image from Caltrans, and indicate you saw it…on the Internet Wayback Machine

1916

Yolo Causeway: Work was completed on the Yolo Causeway, for the first time allowing year-round travel between the State Capital and San Francisco despite the area’s regular floods. This causeway, which became part of I-80, was California’s first highway project financed by the sale of highway bonds.

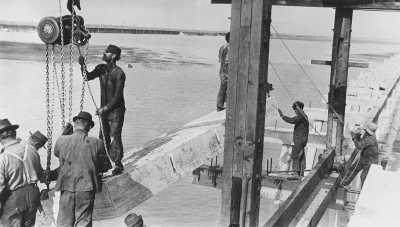

Construction of Yolo Causeway, 1915
Construction of Yolo Causeway, 1915

1953

Four-Level Interchange: The Hollywood, Santa Ana, Pasadena, and Harbor freeways were joined by the first four-level direct connector interchange, sometimes referred to as “The Stack.”

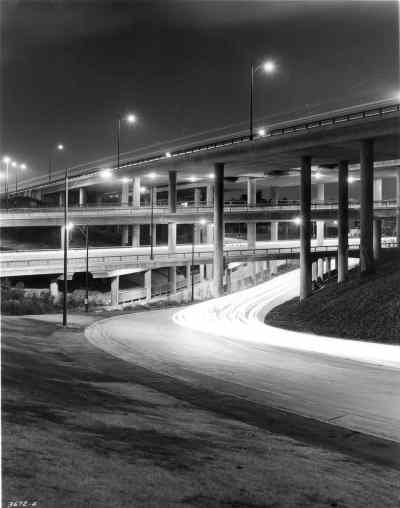

The Stack
The Stack, 1954.

1958

Carquinez Bridge (1-80): The “Big Cut” on the bridge’s southerly approach was the world’s largest at the time, involving 8,800,000 cubic yards of excavation in a cut that was 2,500 feet long, 1,370 feet wide, and, at its deepest point, 300 feet deep.

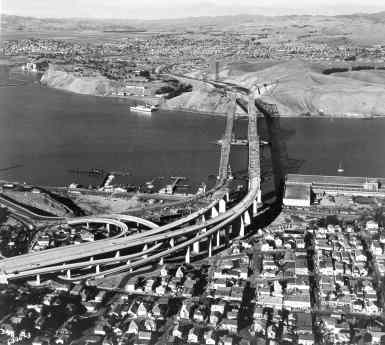

I-80, Carquinez Bridge
I-80, Carquinez Bridge. Note the expanse of the southern approach.

1963

Westside Freeway (1-5): The 321-miles-long Westside Freeway was the longest freeway project undertaken by the State at that time on entirely new alignment. In addition, due to coordination with the California Aqueduct Project, the project required a close collaboration and development of new engineering technologies with Department of Water Resources and the Federal Bureau of Reclamation.

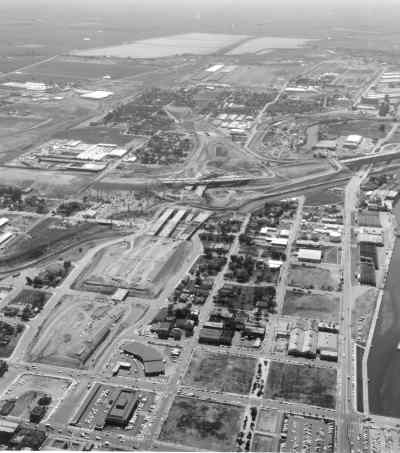

Westside Freeway, I-5
Westside Freeway, I-5, May 10, 1971, near the Stockton Channel.

1965

1-10 in San Bernardino and Riverside counties: Between Cabazon and Palm Springs, highway builders used newly developed machinery to put down four lanes of concrete in a single operation, a wider path than had been done before.

“Traveling deflectometer”: This new device for measuring deflection led to new pavement overlay design procedure.

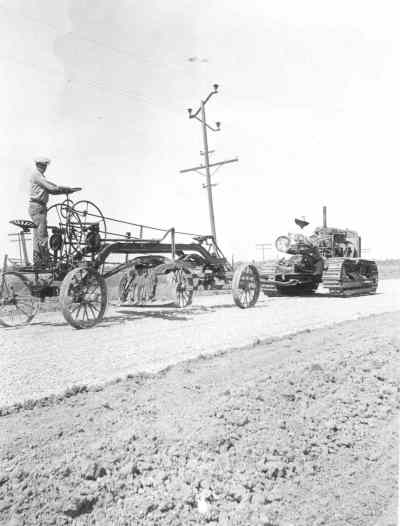

10-Ton Best Pulling 12-Foot Blade
10-Ton Best Pulling 12-Foot Blade, 1926. Construction of I-8 in Imperial County.
Construction of I-10 in San Bernardino County
Construction of I-10 in San Bernardino County, 1933. More modern technology led to the replacement of other construction methods, such as the equipment seen here.

1970

Last section of new Ridge Route (1-5): This eight-lane-wide, 43.2-mile-long section of Ridge Route, which traverses the rugged Grapevine and connects the San Joaquin Valley to the Los Angeles Basin, was constructed primarily on new alignment. A unique solution to the problem presented by the terrain was the use of separate alignments for each direction of travel, including the northbound lanes crossing over the southbound lanes.

1971

Sylmar Earthquake: On February 9, 1971, an earthquake rocked the northern San Fernando Valley, near Sylmar, measuring a magnitude of 6.6 on the Richter scale. The Sylmar Earthquake revealed that many common bridge design details were inadequate for a force of this magnitude. The subsequent research and findings triggered a statewide seismic retrofit program, and the significant changes immediately made to California bridge design standards also became the basis for a new national code.

1975

Pine Valley Bridge (I-8, San Diego County): The Pine Valley Bridge was the second and the largest bridge designed for construction utilizing a segmental balanced cantilever method. The bridge carries I-8 over 200 feet high above the floor of the valley.

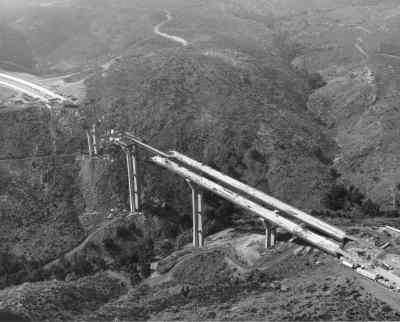

Pine Valley Bridge Construction
Pine Valley Bridge Construction, March 19, 1974.

1984

New Dumbarton Bridge: Opened to motorists in December of 1984, the New Dumbarton Bridge connected San Mateo and Alameda Counties and spanned 8,600 feet across the narrowest neck of San Francisco Bay. Approach embankments were constructed with a number of innovative techniques, including paper wick drains and geomembrane reinforcement. In addition, because of the bridge’s location within the San Francisco Bay National Wildlife Refuge, special care had to be taken during construction to avoid environmental disturbance.

New Dumbarton Bridge
New Dumbarton Bridge, 1986. Note the fishing pier.

1990

Automated Pavement Marker Truck: Developed jointly by University of California, Davis and Caltrans, the Automated Pavement Marker Truck allowed for the installation of raised traffic markers (“Bott’s Dots”) more rapidly, effectively, and safely.

2000

Environmental - “Greening the Fleet”: Caltrans continued to lead the way to cleaner air by using viable, emerging technologies, and by staying ahead of government regulations, in a program called “Greening the Fleet.” This forward-looking initiative began in August of 2000 with a request from Director Jeff Morales to the Caltrans Division of Equipment to lower emissions from the Caltrans mobile fleet.

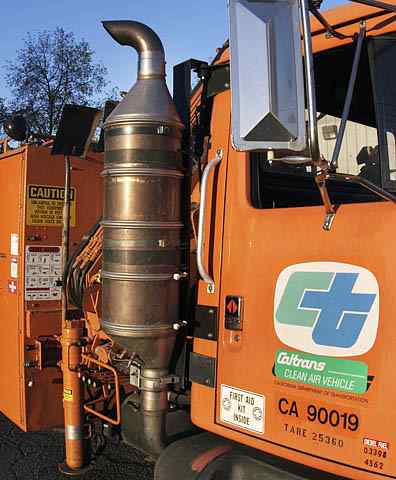

Caltrans Clean Air Vehicle
Caltrans Clean Air Vehicle

2003

“Bubble-Cushion”: This new technology was designed to protect fish and other wildlife during construction on the Benicia-Martinez Bridge on I-680.

Future Plans

Caltrans continues to lead the way in innovation and seeks persistently to improve transportation. For example, Interstate 80 from San Francisco to the Nevada state line is currently undergoing major renovations and improvements. In the Sacramento area, Caltrans is planning to add 10 miles of carpool (HOV) and auxiliary lanes to I-80 in the median from the Sacramento River Bridge to the Capitol City Freeway split, and an additional five-mile segment of HOV and auxiliary lanes will be constructed from the Sacramento/Placer county line to east of Highway 65. Over the Sierra, the I-80 workhorse is getting a much-needed face-lift from Auburn to the Nevada state line.

Major rehabilitation projects, now underway in the Auburn and Gold Run area and scheduled in the next few years around Donner Summit, will replace existing asphalt with Rubberized Asphalt Concrete (RAC) in the lower elevations and Portland Cement Concrete (PCC) in the higher elevations, upgrade safety features, improve existing on and off-ramps, enhance lighting, and install additional Transportation Operation System elements.
